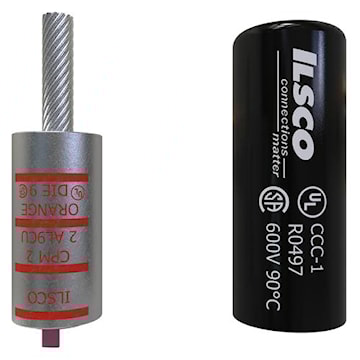

ILSCO CPM-2 ClearChoice Compression Pigtail Adapter Straight Silver
Description
Dual rated copper pigtail adaptor. Barrel manufactured from high strength aluminum alloy. Pigtail manufactured from high conductivity copper. Chamfered barrel. Color coded end caps inserted in barrel. Supplied with insulating cover. Allows insertion into equipment supplied with either copper or aluminum connectors. Provides maximum conductivity and excellent crimping characteristics. Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die.
Specifications
Brand Name | Ilsco | Sub Brand | ClearChoice |
Item Name | Compression Pigtail Adapter | Type | Straight |
Voltage Rating | 600 V | Conductor Size | 2 AWG |
Contact Material | Aluminum/Copper | Color | Silver |
Series/Model | CPM | Barrel Type | Standard |
Temperature Rating | 90 °C | Standards | CSA File No. LR-29601, UL 486A-B, UL E62525 |
Application | Terminating Connector | UPC | 783669844 |
Packages
1 - rarr_unit_1 | 25 - rarr_unit_2 |
