pcclcd4-14a-l
PANDUIT LCD4-14A-L CU LUG,#4-#3AWGSTR,2SOL,1/4IN
pcclcd4-14a-l
PANDUIT LCD4-14A-L CU LUG,#4-#3AWGSTR,2SOL,1/4IN
Manufacturer:PANDUIT
Manufacturer #:LCD4-14A-L
Description

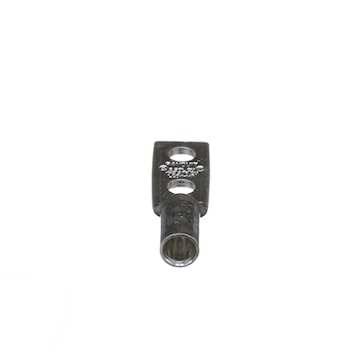

The LCD4-14A-L Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Copper Compression Lug | Type | Compression Lug |
| Number of Holes | 2 | Stud Size | 1/4 in |
| Barrel Length | 0.81 in | Tongue Size | 0.55 x 0.09 in |
| Overall Length | 2.26 in | Color Code | Gray |
| Material | Copper | Series/Model | LCD |
| Voltage Rating | 35000 V | Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Type | Standard | Finish | Tin Plated |
| Standards | UL Listed, CSA Certified | UPC | 074983383047 |
