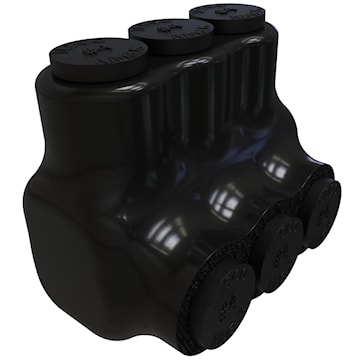

ILSCO PBTS-3-4 Nimbus® Multi-Tap Connector One Side, PBTS, Insulated 3 Ports 4-14 AWG AL/CU
ilspbts34
ILSCO PBTS-3-4 Nimbus® Multi-Tap Connector One Side, PBTS, Insulated 3 Ports 4-14 AWG AL/CU
Manufacturer:ILSCO
Manufacturer #:PBTS-3-4
Description
Insulated multi-tap three port connector, single side entry. High dielectric strength plastisol, black cover. Flexibility in the field. Ensures reliability. Entry port closure. Prevents oxides from forming. For copper or aluminum conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | Nimbus® |
| Item Name | Multi-Tap Connector | Type | One Side, PBTS, Insulated |
| Voltage Rating | 600 V | Number of Ports | 3 |
| Number of Conductors | 3 | Conductor Size | 4-14 AWG |
| Material | AL/CU | Color/Finish | Black |
| Conductor Type | Solid,Stranded | Connection Type | Mechanical |
| Stud Size | 1/8 in | Dimensions | 1.7 in L x 1.22 in W x 1.42 in H |
| Temperature Rating | -45 to 90 °C | Standards | UL 486A-B, UL File Number E6207, CSA File Number LR29601 |
| Application | Connecting Tap | UPC | 783669079005 |
Packages
| 1 - rarr_unit_1 | 12 - rarr_unit_2 |
