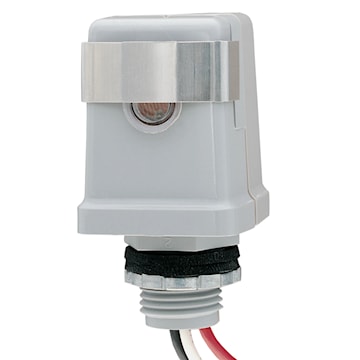

INTERMATIC K4141C Photocontrol Hi Amp Stem Mount Mount

Manufacturer:INTERMATIC
Manufacturer #:K4141C

Description

Photo controls feature stem mounting, thermal-type, controls with single and multi-voltage models. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lighting. The thermal-type controls feature a cadmium sulphide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. Cadmium sulphide photocell. Sonic-welded polycarbonate housing and lens to seal out moisture. Light level slide adjustment. Controls come with a washer gasket and locking nut.

Specifications

Brand Name Intermatic Item Name Photocontrol
Type Hi Amp Voltage Rating 120 V
Ballast Load 25 A 3000 VA Sensor Type Thermal photocontrol
Mounting Stem Mount Amperage Rating 25 A
Frequency Rating 50/60 Hz Material Polycarbonate
Color Gray Finish Plastic
Dimensions 39.7 x 39.7 x 76.2 mm Temperature Rating 70.0 degrees C
For Use With Lighting, pathways Standards CSA, Title CA 20 Listed, California Title 24 Compliant
Application Outdoor Lighting Control UPC 078275029583

Packages

1 - rarr_unit_1 ea - ea
