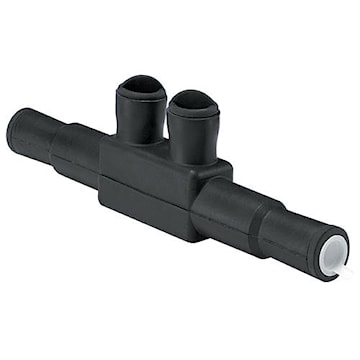

ILSCO USPA-350SS-DB WATERTIGHT UNDERGROUND IN-LINE
Description
Watertight, underground in-line splice. Encapsulated in EPDM rubber with a nominal thickness of 125 Mils and a dielectric strength of 240 Volts per Mil. Connector is produced from high strength 6061-T6 aluminum alloy. Simply cut end inserts to appropriate marked wire size and insert conductor into connector. Suitable for use with either copper or aluminum conductors.
Specifications
Brand Name | ILSCO | Sub Brand | ILSCO |
Type | USPA:INLINE SPLICE-WTRPRF | Voltage Rating | 600 V |
Material | Aluminum | Color | Black |
Temperature Rating | 90 °C | Standards | CSA File Number:LR-29601;UL Control Number:88X4;UL File Number:E125087;UL / CULUS Specification:UL 486D Listed |
Application | Watertight Underground In-Line Splice | UPC | 783669941104 |
Packages
3 - rarr_unit_1 |
