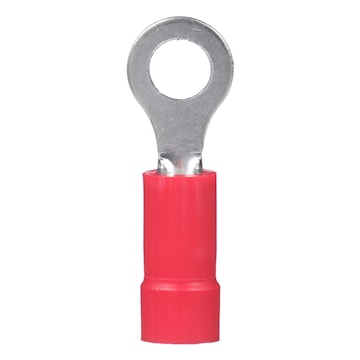

PANDUIT PV18-8R-CY Pan-Term® Insulated Ring Terminal Loose Piece 22-18 AWG #8 Stud size

Manufacturer:PANDUIT
Manufacturer #:PV18-8R-CY

Description

The PV18-8R-CY Pan-TermĀ® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Ring Terminal Type Loose Piece
Conductor Size 22-18 AWG Stud Size #8
Voltage Rating 600 V Insulation Material Vinyl
Material Copper Finish Tin Plated
Color Red Barrel Type Funnel
Tang Type Ring Barrel Length 0.39 in
Barrel Configuration Funnel Entry Temperature Rating 105 °C
Width 0.31 in Standards cULus Listed 587H E52164, CSA Certified LR31212
UPC 074983694778

Packages

1 - rarr_unit_1 100 - rarr_unit_1 500 - rarr_unit_2
