PANDUIT PV14-6R-C Pan-Term® Ring Terminal Loose-Piece 16-14 AWG #6 Stud size

Manufacturer:PANDUIT
Manufacturer #:PV14-6R-C
Documents Documents

Description

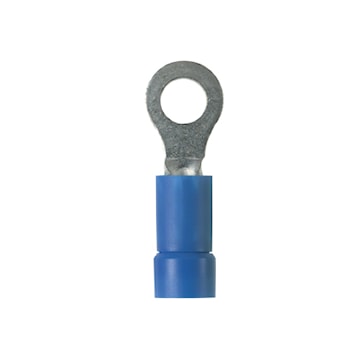

The PV14-6R-C Pan-TermĀ® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Ring Terminal Type Loose-Piece
Conductor Size 16-14 AWG Stud Size #6
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin Plated
Color Blue Barrel Type Funnel
Tang Type Ring Barrel Length 0.46 in
Barrel Configuration Funnel Entry Temperature Rating 221 °F
Width 7.9 mm Standards UL Listed, UL 486A, UL 486B, CSA Certified C22.2 No. 65
Application For M3.5 Bolts UPC 074983801169

Packages

100 - rarr_unit_1 500 - rarr_unit_2
