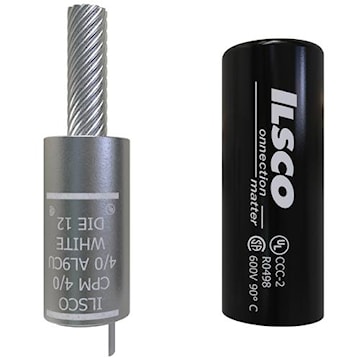

ILSCO CPM-4/0 ClearChoice Compression Pigtail Adapter Straight, Dual Rated White

Manufacturer:ILSCO
Manufacturer #:CPM-4/0

Description

Dual rated copper pigtail adaptor. Barrel manufactured from high strength aluminum alloy. Pigtail manufactured from high conductivity copper. Chamfered barrel. Color coded end caps inserted in barrel. Supplied with insulating cover. Allows insertion into equipment supplied with either copper or aluminum connectors. Provides maximum conductivity and excellent crimping characteristics. Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Type CPM:AL/CU PIN Voltage Rating 600 V
Color White Barrel Type Standard
Temperature Rating 90 degrees C Standards CSA File Number:LR-29601;UL Control Number:941R;UL File Number:E62525;UL / CULUS Specification:UL 486A/B Listed
Application Copper Pigtail Adaptor UPC 783669008548

Packages

1 - rarr_unit_1 10 - rarr_unit_2
