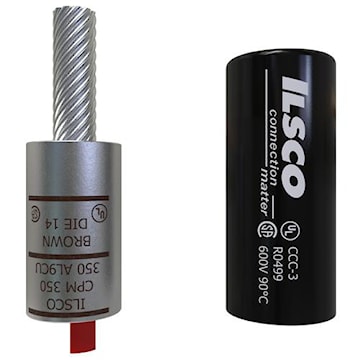

ILSCO CPM-350 ClearChoice Compression Pigtail Adapter Straight Silver

Manufacturer:ILSCO
Manufacturer #:CPM-350

Description

Dual rated copper pigtail adaptor. Barrel manufactured from high strength aluminum alloy. Pigtail manufactured from high conductivity copper. Chamfered barrel. Color coded end caps inserted in barrel. Supplied with insulating cover. Allows insertion into equipment supplied with either copper or aluminum connectors. Provides maximum conductivity and excellent crimping characteristics. Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Item Name Compression Pigtail Adapter Type Straight
Voltage Rating 600 V Conductor Size 350 kcmil
Contact Material Aluminum/Copper Color Silver
Series/Model CPM Barrel Type Standard
Temperature Rating 90 °C Standards CSA File No. LR-29601, UL 486A-B, UL E62525
Application Terminating Connector UPC 783669008609

Packages

1 - rarr_unit_1 10 - rarr_unit_2
