ilscpm3/0

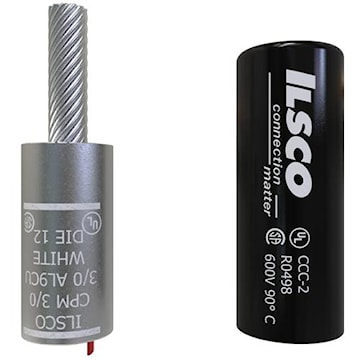

ILSCO CPM-3/0 ClearChoice Compression Pigtail Adapter Straight White
ilscpm3/0
ILSCO CPM-3/0 ClearChoice Compression Pigtail Adapter Straight White
Manufacturer:ILSCO
Manufacturer #:CPM-3/0
Description
Dual rated copper pigtail adaptor. Barrel manufactured from high strength aluminum alloy. Pigtail manufactured from high conductivity copper. Chamfered barrel. Color coded end caps inserted in barrel. Supplied with insulating cover. Allows insertion into equipment supplied with either copper or aluminum connectors. Provides maximum conductivity and excellent crimping characteristics. Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Compression Pigtail Adapter | Type | Straight |
| Voltage Rating | 600 V | Conductor Size | 3/0 AWG |
| Pin Size | 0.373 in dia x 1-3/8 in L | Overall Length | 3-1/4 in |
| Contact Material | Aluminum-Copper | Die Index Number | 12 |
| Color | White | Series/Model | CPM |
| Barrel Type | Standard | Barrel Size | 1-7/8 in |
| Temperature Rating | 90 °C | Standards | UL 486A-B, UL File Number E62525, CSA File Number LR29601 |
| Application | Terminating Connector | UPC | 783669008524 |
Packages
| 1 - rarr_unit_1 | ea - ea | 10 - rarr_unit_2 |
