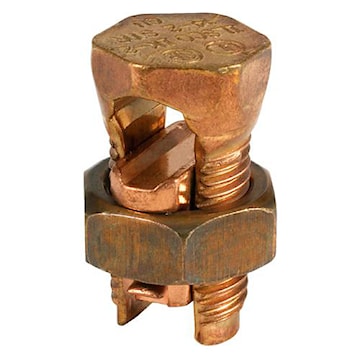

ILSCO IK-350 ClearChoice Split Bolt Connector IK:CU SPLIT BOLT 350 kcmil - 4/0 AWG Stranded Solid Copper, Compact Copper, Compressed Copper, Concentric Copper
Description
Copper split bolt manufactured from high strength copper alloy. For copper conductor only. Allows maximum torque to be applied, maximum conductivity and high breakage resistance. Ensures reliability.
Specifications
Brand Name | Ilsco | Sub Brand | ClearChoice |
Item Name | Split Bolt Connector | Type | IK:CU SPLIT BOLT |
Main Conductor Size | 350 kcmil - 4/0 AWG Stranded | Bolt Size | 0.746 in |
Nut Size | 1-5/8 in | Voltage Rating | 2000 V |
Material | High Strength Copper Alloy | Tap Conductor Size | 350 kcmil - 8 AWG Stranded |
Conductor Type | Solid Copper, Compact Copper, Compressed Copper, Concentric Copper | Inner Diameter | 1-1/2 in |
Overall Length | 2-5/8 in | Finish | NA |
Tightening Torque | 650 in-lb | Color | Copper |
Temperature Rating | 90 °C | Standards | UL 467, UL 460C, UL File Number E6207, CSA Certified, ROHS Compliant |
Application | For Direct Burial in Earth and Concrete | UPC | 783669470208 |
