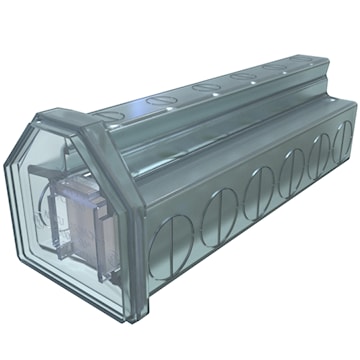

ILSCO PCT-6-350 ClearTap® Multi-Tap Connector Mechanical, PCT, Insulated (6) 350 kcmil - 6 AWG Aluminum
ilspct6350
ILSCO PCT-6-350 ClearTap® Multi-Tap Connector Mechanical, PCT, Insulated (6) 350 kcmil - 6 AWG Aluminum
Manufacturer:ILSCO
Manufacturer #:PCT-6-350
Description
Dual rated Insulated multi-tap six port connector for street lighting. Transparent flexible insulating cover. Captive pressure screws. Self-closing openings. Access from both sides of connector. Provides greater versatility. Reduces inventory. Ensures reliability. For copper or aluminum conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearTap® |
| Type | PCT:MULTI TAP INS AL/CU | Voltage Rating | 600 V |
| Number of Conductors | 6 | Material | Aluminum |
| Conductor Type | Stranded | Connection Type | Mechanical |
| Temperature Rating | 90 degrees C | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Insulated Multi-Tap Connector | UPC | 783669700602 |
Packages
| 1 - rarr_unit_1 | ea - ea | 3 - rarr_unit_2 |
