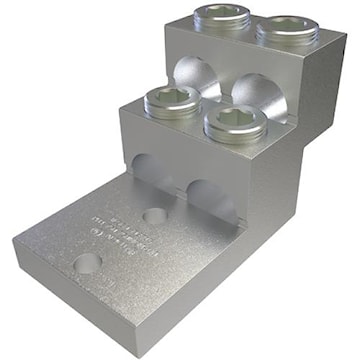

ILSCO PB4-750 ClearChoice Panelboard Stack Lug 750 kcmil - 1/0 AWG High Strength 6061-T6 Aluminum Alloy
ilspb4750
ILSCO PB4-750 ClearChoice Panelboard Stack Lug 750 kcmil - 1/0 AWG High Strength 6061-T6 Aluminum Alloy
Manufacturer:ILSCO
Manufacturer #:PB4-750
Description
Aluminum multi-conductor panelboard connector, dual rated. Manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Stacked design. Provides low contact resistance, ease of installation. Ensures reliability for copper or aluminum conductors. Suitable for use with either copper or aluminum conductors. Saves space and reduces installation time.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Panelboard Stack Lug | Type | PB:PANELBOARD STACK LUG |
| Conductor Type | Aluminum and Copper | Conductor Size | 750 kcmil - 1/0 AWG |
| Number of Bolt Holes | 4 | Material | High Strength 6061-T6 Aluminum Alloy |
| Number of Conductors | 4 | Bolt Size | 3/8 in |
| Voltage Rating | 2000 V | Mounting Hole Size | 13/32 in |
| Temperature Rating | 90 °C | Finish | Electro-Tin Plated |
| Color | Silver | Dimensions | 4.9063 in L x 2-5/8 in W x 3 in H |
| Standards | UL 486A-B, UL File Number E6207, CSA Certified, CSA File Number LR29601 | Application | For Terminating Connector |
| UPC | 783669195354 |
