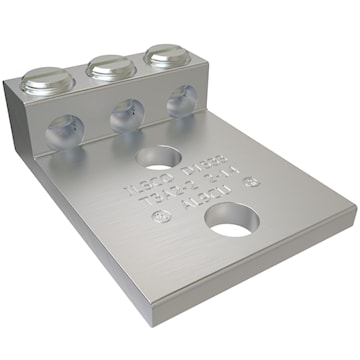

ILSCO T3A2-2 ClearChoice Mechanical Lug (3) 2-14 AWG Aluminum
ilst3a22
ILSCO T3A2-2 ClearChoice Mechanical Lug (3) 2-14 AWG Aluminum
Manufacturer:ILSCO
Manufacturer #:T3A2-2
Description
Dual rated aluminum three conductor connector manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | T3A:3 CONDUCTOR AL/CU | Conductor Type | Solid,Stranded |
| Material | Aluminum | Number of Conductors | 3 |
| Voltage Rating | 35,000 V | Mounting Hole Size | 0.344 in |
| Temperature Rating | 90 degrees C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Mechanical Lug, Three Conductor | UPC | 783669896541 |
Packages
| 1 - rarr_unit_1 | EA - EA | 6 - rarr_unit_2 |
