pcccxs125-14-q

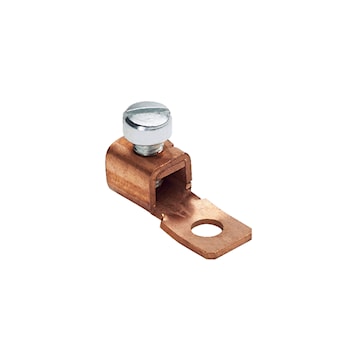

PANDUIT CXS125-14-Q Pan-Lug™ Mechanical Lug Connector 4-1/0 AWG Copper
pcccxs125-14-q
PANDUIT CXS125-14-Q Pan-Lug™ Mechanical Lug Connector 4-1/0 AWG Copper
Manufacturer:PANDUIT
Manufacturer #:CXS125-14-Q
Description
One-hole, copper, single barrel, straight fixed tongue lug, #4 - 1/0 AWG, 1/4 (6.4mm) stud hole.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Mechanical Lug Connector | Type | Single Barrel |
| Conductor Type | Copper | Conductor Size | 4-1/0 AWG |
| Number of Bolt Holes | 1 | Material | Copper |
| Series | CXS | Number of Conductors | 1 |
| Bolt Size | 1/4 in | Tongue Size | 0.62 in W x 0.09 in T |
| Tongue Type | Straight | Voltage Rating | 600 VAC |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Dimensions | 1.6 in L x 0.62 in W x 0.73 in H | Standards | cULus Listed |
| UPC | 074983030477 |
