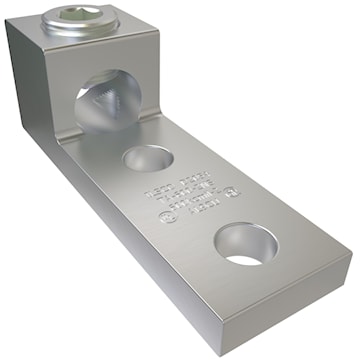

ILSCO TA-600-2NS ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
ilsta6002ns
ILSCO TA-600-2NS ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
Manufacturer:ILSCO
Manufacturer #:TA-600-2NS
Description
Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | TA |
| Conductor Type | Aluminum/Copper | Conductor Size | 600 kcmil - 2 AWG |
| Material | Aluminum | Number of Conductors | 1 |
| Voltage Rating | 2000 V | Mounting Hole Size | 1-3/4 in |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File No. LR-29601, UL 486A-B, UL E6207 |
| Application | Terminating Connector | UPC | 783669892178 |
