ilsctl750

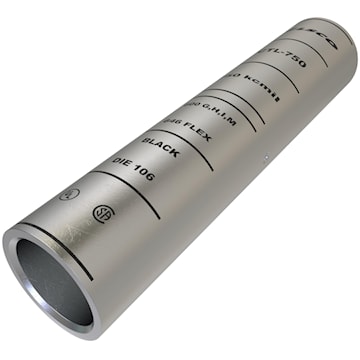

ILSCO CTL-750 CU COMP SLEEVE LONG BARREL 750
ilsctl750
ILSCO CTL-750 CU COMP SLEEVE LONG BARREL 750
Manufacturer:ILSCO
Manufacturer #:CTL-750
Description
Long barrelled copper compression sleeve, chamfered entry, color coded. Manufactured from high strength seamless copper tubing. Offers maximum conductivity and excellent crimping characteristics. Provides low contact resistance. For easy conductor insertion. Identifies the proper compression die. For grounding and bonding applications.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Splice Connector | Type | Long Sleeve |
| Conductor Type | Stranded, Solid | Conductor Size | 750 kcmil |
| Material | Copper | Connector Type | Parallel |
| Voltage Rating | 35000 V | Temperature Rating | 90 °C |
| Finish | Tin Plated | Color | Silver |
| Dimensions | 5-7/8 in L x 1.313 in W x 1.313 in H | Standards | CSA Certified in File Number LR-29601, UL Control Number 453G, UL File Number E6207, UL/cULus, UL 486A/B Listed |
| Application | For Grounding and Bonding Applications | UPC | 783669151107 |
Packages
| 1 - rarr_unit_1 | 3 - rarr_unit_2 |
