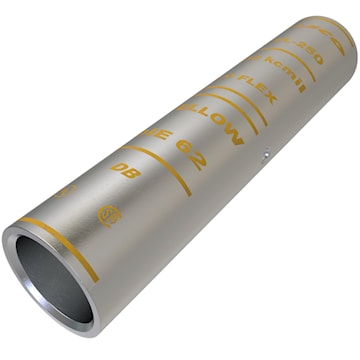

ILSCO CTL-250 SureCrimp® Compression Sleeve 3-3/8 in L Electro Tin Plated Copper Long Chamfered Barrel
ilsctl250
ILSCO CTL-250 SureCrimp® Compression Sleeve 3-3/8 in L Electro Tin Plated Copper Long Chamfered Barrel
Manufacturer:ILSCO
Manufacturer #:CTL-250
Description
Long barrelled copper compression sleeve, chamfered entry, color coded. Manufactured from high strength seamless copper tubing. Offers maximum conductivity and excellent crimping characteristics. Provides low contact resistance. For easy conductor insertion. Identifies the proper compression die. For grounding and bonding applications.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Compression Sleeve | Type | Long Chamfered Barrel |
| Conductor Type | Aluminum/Copper | Conductor Size | 250 kcmil Stranded/Solid |
| Length | 3-3/8 in | Material | Copper |
| Series | CTL | Connector Type | Compression |
| Voltage Rating | 35000 V | Temperature Rating | 90 °C |
| Finish | Electro Tin Plated | Color | Silver |
| Dimensions | 3/4 in W x 3/4 in H | Standards | UL 453G File Number E6207 Listed, CSA File Number LR-29601 Certified |
| Application | Copper Compression Sleeve, Long Barrel | UPC | 783669128352 |
Packages
| 1 - rarr_unit_1 | 6 - rarr_unit_2 |
