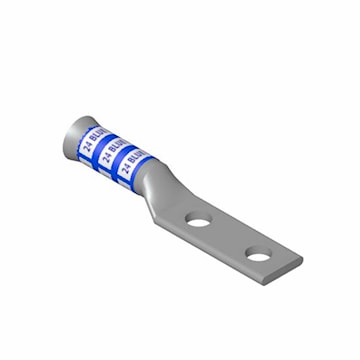

ABB INS 54866BEBS Color-Keyed® Compression Lug 2 Holes Copper 4/0 AWG 1/2 in Stud size
Description
Bell end compression lug for copper conductor. Certified to 600V and recommended up to 35kV.
Specifications
Brand Name | ABB | Sub Brand | Color-Keyed® |
Item Name | Compression Lug | Type | Bell Shaped End |
Conductor Size | 4/0 AWG | Number of Holes | 2 |
Stud Size | 1/2 in | Barrel Length | Long |
Color Code | Purple | Material | Copper |
Voltage Rating | 35000 V | Barrel Type | Long |
Finish | Tin-Plated | Standards | UL E9809 Listed |
UPC | 786210955254 |
Packages
1 - rarr_unit_1 |
