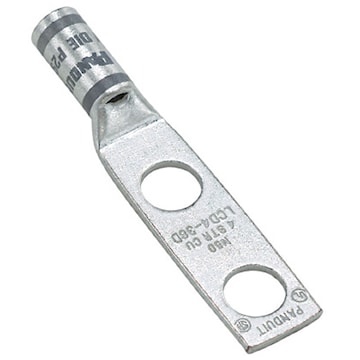

PANDUIT LCD350-38D-X CULUGSBW,2HOLE,350KCMIL,3/8,1
Description
Two-hole, standard barrel lug with window, 350 kcmil cable, 3/8 stud hole, 1 hole spacing.
Specifications
Brand Name | Panduit | Sub Brand | Pan-Lug™ |
Item Name | Compression Lug | Type | Compression Lug |
Conductor Size | 350 kcmil | Number of Holes | 2 |
Stud Size | 3/8 in | Barrel Length | 1.44 in |
Overall Length | 3.78 in | Color Code | Red |
Material | Copper | Series/Model | LCD |
Voltage Rating | 35000 V | Barrel Type | Standard with Inspection Window |
Tongue Type | Standard | Stud Hole Spacing | 1 in |
Finish | Tin Plated | Standards | 486A-486B File #E52164 |
UPC | 074983719617 |
