pcclcc4-14b-l
PANDUIT LCC4-14B-L CUCOMPLUGLB,2H,4-3A,#A,1/4S,.
pcclcc4-14b-l
PANDUIT LCC4-14B-L CUCOMPLUGLB,2H,4-3A,#A,1/4S,.
Manufacturer:PANDUIT
Manufacturer #:LCC4-14B-L
Description

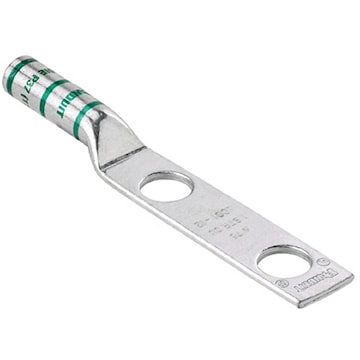

Two-hole, long barrel lug, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .75 hole spacing.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Compression Lug |
| Conductor Size | 4-3 AWG Stranded, 2 AWG Solid | Number of Holes | 2 |
| Stud Size | 1/4 in | Barrel Length | 1.05 in |
| Overall Length | 2.7 in | Color Code | Gray |
| Material | Copper | Series/Model | LCC |
| Voltage Rating | 35000 V | Barrel Type | Long without Inspection Window |
| Tongue Type | Standard | Stud Hole Spacing | 3/4 in |
| Finish | Tin Plated | Standards | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| UPC | 074983382538 |
