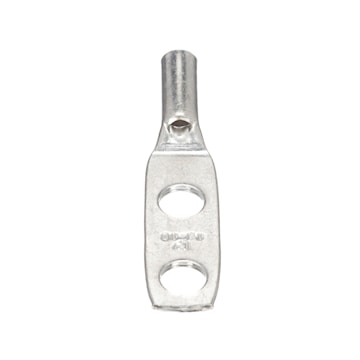

PANDUIT LCC10-14AW-L Pan-Lug™ Compression Lug 2 Holes Copper 1/4 in Stud size
Description
PANDUIT® Code conductor two-hole window long barrel lug maximizes number of crimps and provides premium wire pull-out strength and electrical performance. Inspection window to visually assure full conductor insertion. Color-coded barrels marked with specified competitor die index numbers for proper crimp die selection. Tin-plated to inhibit corrosion.
Specifications
Brand Name | Panduit | Sub Brand | Pan-Lug™ |
Item Name | Compression Lug | Type | Type LCC-W |
Number of Holes | 2 | Stud Size | 1/4 in |
Barrel Length | 0.53 in | Overall Length | 1.93 in |
Material | Copper | Voltage Rating | 35000 V |
Barrel Type | Long with Inspection Window | Tongue Type | Standard |
Finish | Tin Plated | Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
UPC | 074983973835 |
