burya362n
HUBBELL CANADA ULC YA362N 600 CU 2-HOLE LONG NEMA
burya362n
HUBBELL CANADA ULC YA362N 600 CU 2-HOLE LONG NEMA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:YA362N
Description

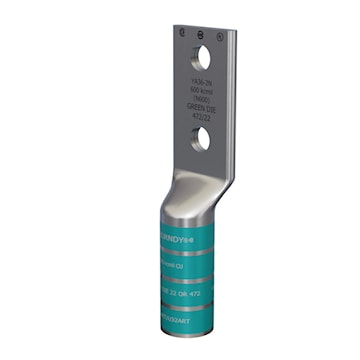

Copper Compression Lug, 2 Hole w/o Inspection Window, 600 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Item Name | 2-Hole Compression Lug | Type | Long Barrel, Tin Plated |
| Conductor Size | 600 kcmil | Number of Holes | 2 |
| Stud Size | 1/2 in | Overall Length | 6.59 in |
| Color Code | Green | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long, Chamfer |
| Tongue Type | Straight | Die Code | 22 or 472 |
| Strip Length | 2-3/4 in | Stud Hole Spacing | 1-3/4 in |
| Finish | Electro Tin Plated | Mounting Type | Hole |
| Temperature Rating | 90 °C | Standards | UL 486A, 486B, CSA, NEMA |
| Application | For Code Conductor | UPC | 781810521526 |
Packages
| 1 - rarr_unit_1 |
