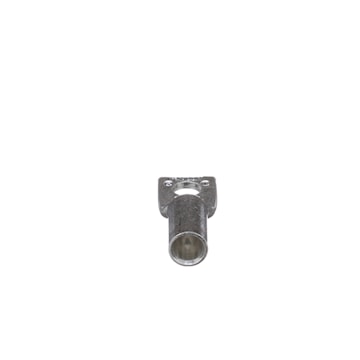

PANDUIT LCA4-14-L CU LUG 3 (CRA-3)

Manufacturer:PANDUIT
Manufacturer #:LCA4-14-L
Documents Documents

Description

Window lug with standard-barrel, one-hole for use with stranded copper conductors. Colour-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name 1-Hole Compression Lug Type Type LCA
Conductor Size 4-3 AWG Number of Holes 1
Stud Size 1/4 in Barrel Length 0.81 in
Tongue Size 0.55 in W x 0.09 in T Overall Length 1.63 in
Color Code Gray Material Copper
Voltage Rating 35000 V Barrel Type Standard with Inspection Window, Straight
Tongue Type Standard Finish Tin Plated
Mounting Type Hole Temperature Rating 90 °C
Standards C22.2 No. 65-13, 486A-486B File E52164, California Proposition 65 Warning UPC 074983900114

Packages

1 - rarr_unit_1 50 - rarr_unit_2 100 - rarr_unit_3
