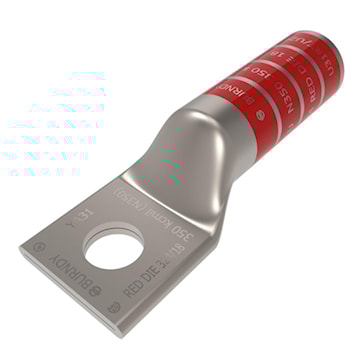

HUBBELL YA31 Hylug™ Compression Lug 1 Holes Copper 350 kcmil, 185 mm² for Class 2 Conductor 0.5 in Stud size
Description
Copper Compression Lug, 1 Hole w/o Inspection Window, 350 kcmil, 1/2" Stud, Long Barrel, Tin Plated.
Specifications
Brand Name | Burndy | Sub Brand | Hylug™ |
Item Name | Compression Lug | Type | Straight, Non-Insulated |
Conductor Size | 350 kcmil, 185 mm² for Class 2 Conductor | Number of Holes | 1 |
Stud Size | 0.5 in | Overall Length | 3.73 in |
Color Code | Red | Material | Copper |
Voltage Rating | 35000 V | Barrel Type | Long |
Terminal Connection | Slender Flange | Finish | Tin Plated |
Standards | UL Listed At 90 °C, 600 V - 35 kV, CSA Certified, RoHS Compliant | Application | Code Conductor |
UPC | 781810504956 |
Packages
1 - rarr_unit_1 |
