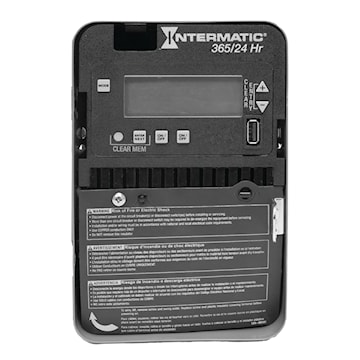

INTERMATIC INC ET2125C 120-277V 24-HOUR ELECTRITIMER

Manufacturer:INTERMATIC INC
Manufacturer #:ET2125C

Description

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. They come in standard 24-hour versions.


100-hour supercapacitor eliminates the need for batteries

Up to 96 set points or events

Up to 50 holiday blocks with schedule capabilities

Automatic input voltage selection from 120 to 277 VAC, 60 Hz

Additional mode of operation turns the ON/OFF buttons into 2-hour overrides

Configurable outputs allow the control of various voltages and applications

Relays incorporate zero-crossing technology to extend the life of the control

Non-volatile EEPROM memory protects programming indefinitely

LED compatible

USB port makes transferring and saving of schedules easy

Specifications

Brand Name Intermatic Type Electronic
Voltage Rating 120 - 277 VAC Amperage Rating 30 A
Number of Poles 1 Contact Configuration SPST - 1 NO
Frequency Rating 50/60 Hz Mounting Wall Mount
Standards UL Rating, Meet Title 20/24 Compliance Application Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
UPC 078275148017
