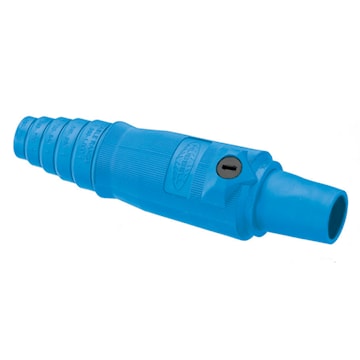

HUBBELL HBL400FBL Single Pin Single Pole Connector Female Plug 400 A, 600/250 VAC/VDC, 1 Ports 1 Conductors Blue
Description
Single pole thermoplastic elastomer female plug. Cable size 2/0 - 4/0 AWG.
Specifications
Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Single Pin |
Item Name | Single Pole Connector | Type | Female Plug |
Voltage Rating | 600/250 VAC/VDC | Amperage Rating | 400 A |
Conductor Size | 2/0-4/0 AWG | Number of Conductors | 1 |
Connection Type | Screw | Wattage | 240000 W |
Phase | 1 | Material | Composite |
Color | Blue | Number of Ports | 1 |
Screw Type | Pressure Terminal | Length | 7.700 in |
Mounting | Cord | NEMA Rating | Non-NEMA |
Standards | UL 498 | Application | For High Ampacity Connections |
UPC | 783585113739 |
