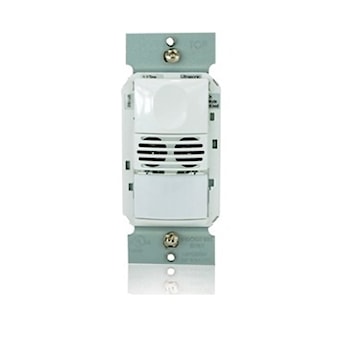

LEGRAND DSW-301-347-W Wattstopper Occupancy Sensor Wall Switch, Dual Technology 347 VAC, White

Manufacturer:LEGRAND
Manufacturer #:DSW-301-347-W

Description

WattStopper® Dual technology wall switch occupancy sensor turns lights off and on based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. Replaces existing wall switches and fits behind a standard decorator wall plate. High sensitivity and dense coverage for exceptional performance. Allows multi-way control from one of up to four control locations. colour-matched lens and low profile for appealing design. Optional neutral connection with break off tab to expose neutral terminals. Defaults to manual-on operation for maximum energy savings. Load: 0 to 1500 W ballast and LED, 1/6 HP.

Specifications

Brand Name WattStopper Sub Brand Wattstopper
Item Name Occupancy Sensor Type Wall Switch, Dual Technology
Voltage Rating 347 VAC Sensor Type Passive Infrared
Sensing Distance 10.6 m Floor/Front, 2.2 m Side Color White
Mounting Type Surface Frequency Rating 0 - 60 Hz
Maximum Load Capacity 1500 W Material Plastic
Dimensions 44 mm W x 46 mm D x 69 mm H Mounting Height 1.2 m
Application For Commercial, Offices, Conference Rooms, Lunch/Break Rooms UPC 754182935680
