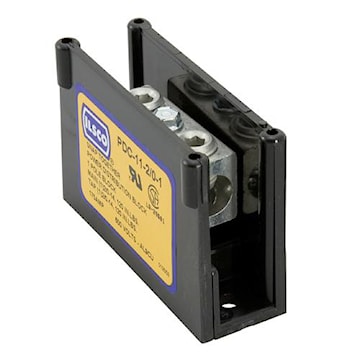

ILSCO PDC-11-2/0-1 ClearChoice Power Distribution Snap Block 2/0-14 AWG Primary and Secondary 1 P, 175 A/Pole,
ilspdc112/01
ILSCO PDC-11-2/0-1 ClearChoice Power Distribution Snap Block 2/0-14 AWG Primary and Secondary 1 P, 175 A/Pole,
Manufacturer:ILSCO
Manufacturer #:PDC-11-2/0-1
Description
Dual rated modular type power distribution block, manufactured from high strength 6061-T6 aluminum alloy. Simplifies stocking. Combines any number of blocks with multiple conductor ranges into the specific configuration required for the job. Unique locking feature allows individual blocks to be combined quickly without special tools. Provides a high degree of impact resistance with superior insulating qualities. Suitable for use with either copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Power Distribution Snap Block | Type | Small |
| Voltage Rating | 600 V | Amperage Rating | 175 A/Pole |
| Number of Poles | 1 | Conductor Size | 2/0-14 AWG Primary and Secondary |
| Connection Type | Screw | Temperature Rating | 90 °C |
| Block Material | Aluminum | Color | Black |
| Standards | UL 1953, UL File Number E84782, CSA File Number LR29601 | Application | Tap Connector |
| UPC | 783669711325 |
Packages
| 1 - rarr_unit_1 | EA - EA | 12 - rarr_unit_2 |
