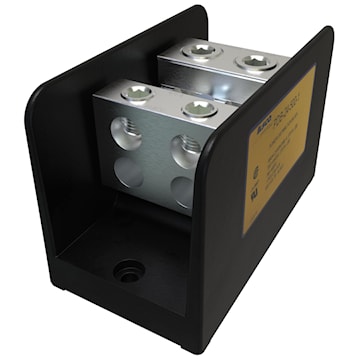

ILSCO PDB-24-500-1 POWER DISTRIBUTION BLOCK
Description
Dual rated power distribution block manufactured from high strength 6061-T6 aluminum alloy. Provides great flexibility in using the connector as an in line splice or to reduce conductor size, high degree of impact resistance with superior insulating qualities. Suitable for use with either copper or aluminum conductors. Ensures reliability.
Specifications
Brand Name | Ilsco | Sub Brand | ClearChoice |
Type | PDB:PWR DIST BLK AL/CU | Voltage Rating | 600 V |
Amperage Rating | 760 A | Number of Poles | 1 Pole |
Temperature Rating | 90 °C | Color | Black |
Standards | CSA File Number:LR-29601;UL Control Number:NA;UL File Number:E84782;UL / CULUS Specification:UL 1059 Recognized | Application | Power Distribution Block |
UPC | 783669710670 |
