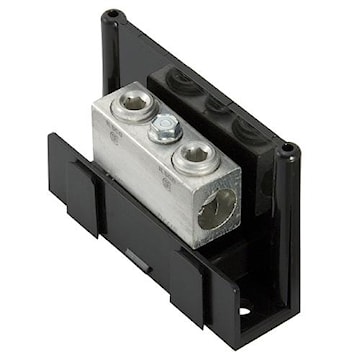

ILSCO PDA-11-2/0-1 ClearChoice Power Distribution Block 2/0-14 AWG Primary and Secondary 175 A/Pole,

Manufacturer:ILSCO
Manufacturer #:PDA-11-2/0-1

Description

Dual rated modular type power distribution block, manufactured from high strength 6061-T6 aluminum alloy. Simplifies stocking. Combines any number of blocks with multiple conductor ranges into the specific configuration required for the job. Unique locking feature allows individual blocks to be combined quickly without special tools. Provides a high degree of impact resistance with superior insulating qualities. Suitable for use with either copper or aluminum conductors.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Item Name Power Distribution Block Type Small
Voltage Rating 600 V Amperage Rating 175 A/Pole
Conductor Size 2/0-14 AWG Primary and Secondary Connection Type Screw
Temperature Rating 90 °C Block Material Aluminum
Color Black Standards UL 1953, UL File Number E84782, CSA File Number LR29601
Application Tap Connector UPC 783669711349
