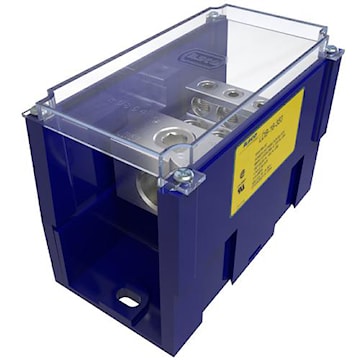

ILSCO LDB-16-350 SnapBloc® Power Distribution Block 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary 310 A,
ilsldb16350
ILSCO LDB-16-350 SnapBloc® Power Distribution Block 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary 310 A,
Manufacturer:ILSCO
Manufacturer #:LDB-16-350
Description
MODULAR, 600 V, 310 AMPERE, 1 PRIMARY OPENINGS PER POLE, 6 AWG TO 350 MCM PRIMARY OPENING WIRE SIZE, 6 SECONDARY OPENINGS PER POLE, 14 TO 2/0 AWG SECONDARY OPENING WIRE SIZE, CONDUCTOR MATERIAL COPPER/ALUMINUM, CLEAR COVER, TEMPERATURE RATING 90 DEG C, ELECTRO TIN PLATED 6061-T6 ALUMINUM ALLOY CONNECTOR, SIZE 3 INCH L X 5-1/2 INCH W X 3-7/16 INCH H, APPROVAL UL, CSA, SNAPBLOC[R] BRAND, LDB MODEL
Specifications
| Brand Name | Ilsco | Sub Brand | SnapBloc® |
| Item Name | Power Distribution Block | Type | LDB |
| Voltage Rating | 600 V | Amperage Rating | 310 A |
| Conductor Size | 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary | Connection Type | Screw Terminal |
| Temperature Rating | 90 °C | Block Material | Aluminum |
| Color | Blue | Dimensions | 76.2 mm W x 139.7 mm H |
| Includes | 2 Side Panel | Standards | CSA File No. LR-29601, UL 1059 |
| Application | Tap Connector | UPC | 783669595055 |
Packages
| 1 - rarr_unit_1 |
