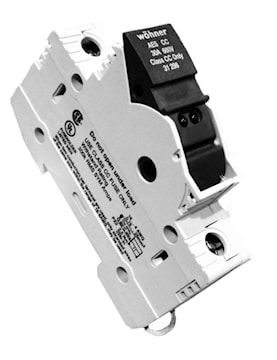

FUSETEK 31110.000 Wohner Fuse Holder 1 P, 30 A, 600 VAC, DIN Rail Mount

Manufacturer:FUSETEK
Manufacturer #:31110.000

Description

Wohner Class CC and Midget fuseholders are compact DIN rail mountable fuseholders available in a variety of configurations and options. They offer enhanced specifications and features. Meets "Dead Front" requirements and IEC Type IP20 protection. Mountable on 35 mm DIN rail. Indicating and non-indicating versions available. Large wire capacity. Optional low voltage indicator works down to 12 V. Insensitive to DC polarity. Accepts all standard CC and midget fuses.

Specifications

Brand Name Fusetek Sub Brand Wohner
Item Name Fuse Holder Voltage Rating 600 VAC
Amperage Rating 30 A Fuse Type Class Midget
Number of Poles 1 Wire Size 18-4 AWG (1 Wire), 18-6 AWG (2 Wires)
Indicating/Non-Indicating Non-Indicating Connector Type Box
Length 81 mm Width 18 mm
Height 58 mm Mounting DIN Rail
For Use With KLK Fuse Standards CSA C22.2 Number 39 (File 110285), UL512 (File E230163), UL94 Flammability Rating
