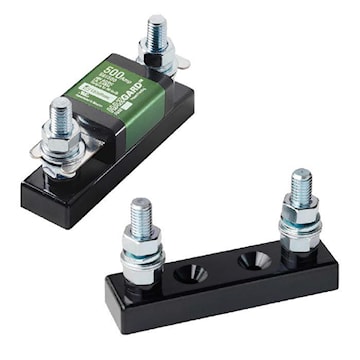

FUSETEK LFFB0003Z Powr-Gard® Fuse Block Limiter Style 1 P, 800 A, 150 VAC/VDC, Screw Mount
fuslffb0003z
FUSETEK LFFB0003Z Powr-Gard® Fuse Block Limiter Style 1 P, 800 A, 150 VAC/VDC, Screw Mount
Manufacturer:FUSETEK
Manufacturer #:LFFB0003Z
Description
The LFFB series fuse block is designed to accept bolt-down style limiter fuses. Applications include but are not limited to forklifts, golf carts and other low-voltage battery equipment. It is specifically designed for the HAZGARD™ fuse but can be used for CNN and CNL series fuses as well.
Specifications
| Brand Name | Littelfuse | Sub Brand | Powr-Gard® |
| Item Name | Fuse Block | Type | Limiter Style |
| Voltage Rating | 150 VAC/VDC | Amperage Rating | 800 A |
| Number of Poles | 1 | Series/Model | LFFB |
| Material | Thermoplastic | Color | Black |
| Length | 3.41 in | Width | 0.94 in |
| Height | 1.935 in | Mounting | Screw Mount |
| For Use With | Hazgard™ Fuse, CNN and CNL Series Fuses | Standards | RoHS Compliant, UL Recognized File Number E14721, UL94 V-0 Flammability Rating |
