cschbp240w40k
CSC LED CORP. HBP-240W-40K High Bay Fixture 31101 lm 4000 K 120 - 277 V, 0 - 10 V Dimming, Dimmable, 110° Beam
cschbp240w40k
CSC LED CORP. HBP-240W-40K High Bay Fixture 31101 lm 4000 K 120 - 277 V, 0 - 10 V Dimming, Dimmable, 110° Beam
Manufacturer:CSC LED CORP.
Manufacturer #:HBP-240W-40K
Description

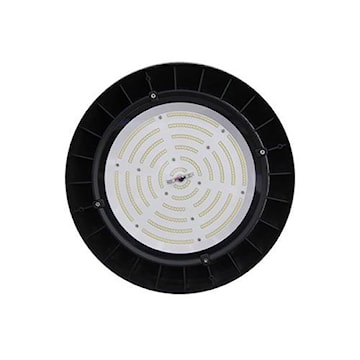

HBP series high bay. Pendant style. IP65. Rugged cast aluminium. Polyester powder coat finish (Black). High-impact tempered glass with high light transmittance.
Specifications
| Brand Name | CSC-LED | Item Name | High Bay Fixture |
| Type | Dimmable, 110° Beam | Voltage Rating | 120 - 277 V, 0 - 10 V Dimming |
| Fixture Wattage | 240 W | Lamp Type | LED |
| Housing Finish | Polyester Powder Coated | Series | HBP |
| Average Life | 50000 hr | Lumens | 31101 lm |
| Color Temperature | 4000 K | Color Rendering Index (CRI) | 84.5 |
| Lens Type | Frosted Polycarbonate | Reflector Type | Aluminum or Polycarbonate |
| Enclosure Type | IP65 | Mounting Type | Yoke/Pendant |
| Housing Material | Cast Aluminum | Color | Black |
| Width | 379.3 mm | Height | 218.9 mm |
| Temperature Rating | -40 to 40 °C | Standards | DLC, cULus Listed |
