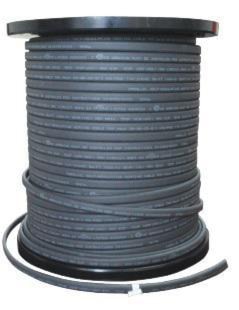

THERMAL RESOURCES MANAGEMENT BR-SR-8-1 8 w/ft 120v Self Reg Heat Trace Type BO
Description
TRM Self Regulating heating cable is ideal for keeping metal and plastic pipes warm, in commercial, industrial and residential applications. The semi-conductive core regulates its heat output based on the surrounding temperature and can vary its heat output along the cable's entire length, saving energy and eliminating hot spots along the pipe. Parallel construction of SR cable means it can be cut to length in the field, overlapped on valves and flanges and installed according to site needs. TRM's SR cable is suitable in applications such as freeze protection, temperature maintenance, sprinkler tracing, roof and gutter deicing, heat loss replacement and frost heave prevention. The cable can also be utilized for industrial applications, such as cooling towers, food processing, water treatment, tanks and vessel heating. SR cable is a cost effective solution for most heat tracing applications, with a range of product choices that can be designed to match your project's requirements. A complete range of accessories are available to complement our SR cable, including termination and end seal kits, installation clips and hangers, as well as a wide range of control and sensing options.
Specifications
Brand Name | TRM Heating Cables | Item Name | Heating Cable |
Type | Type BO, Self Regulating | Voltage Rating | 120 V |
Core | Semi-Conductive | Conductor Size | 16 AWG |
Conductor Material | Copper | Wattage | 8 W/ft |
Temperature Rating | 150 °F | Insulation Material | Polymer |
Jacket Material | Polyolefin | Standards | cCSAus Certified |
Application | For Freeze Protection, Sprinkler Tracing, Roof and Gutter De-Icing, Heat Loss Replacement and Frost Heave Prevention |
