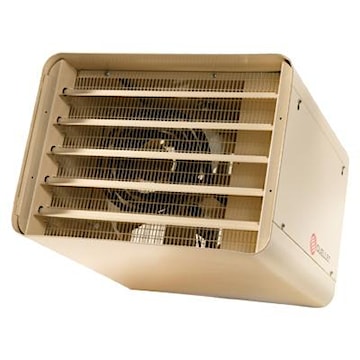

OUELLET OAS05036T Unit Heater with Thermostat Suspended 5 kW, 1 or 3 PH, 600 V

Manufacturer:OUELLET
Manufacturer #:OAS05036T

Description

OAS-series suspended unit heater with epoxy/polyester powder paint finish. Adjustable louvres to direct air flow. High-limit temperature control with automatic reset. Durable stainless steel tubular heating elements. This unit heater may be mounted horizontally (wall or ceiling) using supplied brackets or vertically using 4 threaded rods (not included). It has temperature rise of 13°C. Designed for areas requiring a high level of air flow. Suitable for commercial hall, warehouse, stairwell and factory applications.

Specifications

Brand Name Ouellet Item Name Unit Heater with Thermostat
Type Suspended Voltage Rating 600 V
Phase 1 or 3 Wattage 5 kW
BTU Rating 17060 Btu Flow Rate 700 ft³/min
Temperature Range 85 °F Housing Material 18 - 20 ga Steel
Color/Finish Almond/Epoxy/Polyester Powder Paint Mounting Type Horizontal Wall or Ceiling
Dimensions 16-1/2 in W x 17 in D x 12 in H Weight 45 lb
Standards CSA Certified Application For Commercial Hall, Warehouse, Stairwell, Factory
UPC 625262012914
