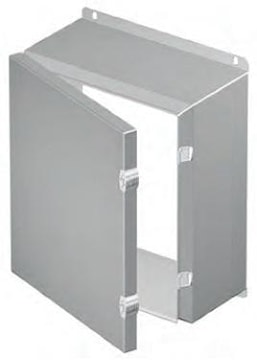

EXM 5412ESCH121008 Eurobex® Enclosure Steel NEMA 4/12, IP66 12 in H x 10 in W x 8 in D ANSI 61 Gray
Description
Enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. It is made from quality 16-gauge steel with corner seams continuously welded. The opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. A high quality robotically poured-in-place seamless gasket ensures a complete and durable water tight seal. The enclosures feature die cast hinges, which are bound to the cover by an exclusive concealed hinge pin system. The covers are interchangeable and can be removed by unfastening the antivibration lock nuts.
Specifications
Brand Name | EXM Manufacturing | Sub Brand | Eurobex® |
Item Name | Enclosure | Type | Single Door, Standard, Multipurpose |
Width | 10 in | Depth | 8 in |
Height | 12 in | Cover Type | Hinged, Quarter Turn Latch |
Gauge | 16 | NEMA Rating | NEMA 4/12, IP66 |
Series | ESCH | Mounting Type | Wall |
Material | Steel | Finish | Galvanized, Polyester Powder Painted |
Color | ANSI 61 Gray | Standards | UL Listed, CSA Certified |
Application | For Indoor and Outdoor use, used in Areas Where it May be Subject Water, Hosing, Dust, Dirt and Oil Splashing | UPC | 717678040428 |
