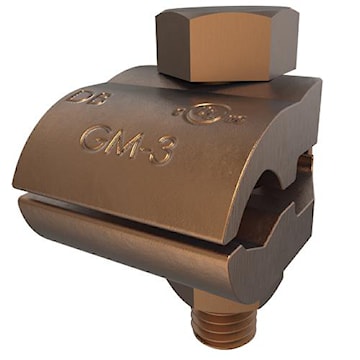

ILSCO GM-3 PermaGround™ Ground Clamp 250 kcmil - 2/0 AWG
ilsgm3
ILSCO GM-3 PermaGround™ Ground Clamp 250 kcmil - 2/0 AWG
Manufacturer:ILSCO
Manufacturer #:GM-3
Description
Permaground Ground Clamp Connector, Mechanical connection, Copper material, mounting bolt/stud size 5/16 in, UL 467 Listed, Copper Primary Conductor 250 kcmil - 2/0 Str and 4/0 Sol - 2/0 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 1/2 External Hex, primary color Copper,
Specifications
| Brand Name | Ilsco | Sub Brand | PermaGround™ |
| Item Name | Ground Clamp | Type | GM:BRONZE 1 CABLE TO FLAT |
| Conductor Type | Aluminum/Copper | Conductor Size | 250 kcmil - 2/0 AWG |
| Material | Copper | Color | Copper |
| Finish | NA | Standards | UL Listed 8M24, UL Listed E158587, UL/cULus Listed, UL 467 Listed |
| Application | Ground Clamp Connector | UPC | 783669946598 |
Packages
| 1 - rarr_unit_1 | 75 - rarr_unit_2 |
