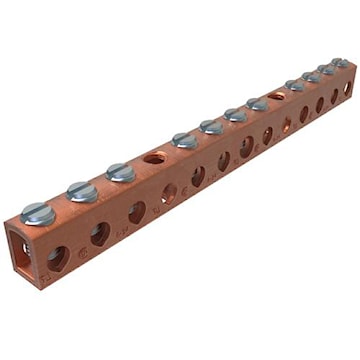

ILSCO D167-10 ClearChoice Ground Bar D167:GROUND BARS Copper 5-1/8 in L
ilsd16710
ILSCO D167-10 ClearChoice Ground Bar D167:GROUND BARS Copper 5-1/8 in L
Manufacturer:ILSCO
Manufacturer #:D167-10
Description
Copper neutral bar manufactured from high strength copper tubing. Provides maximum conductivity. A wide range of conductor sizes can be used in the same connector. Ensures reliability for copper conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Ground Bar | Type | D167:GROUND BARS |
| Bar Width | 0.3438 in | Bar Length | 5-1/8 in |
| Bar Height | 3/4 in | Voltage Rating | 2000 V |
| Series | D167 | Connection Type | Screw |
| Cable Tap | 6-14 AWG | Cable Main | 4-14 AWG |
| Tap Quantity | 10 | Material | Copper |
| Finish | NA | For Use With | Tap Connector/Grounding Connector |
| Standards | UL File Number E6207 | Application | Neutral Bar |
| UPC | 783669161564 |
Packages
| 1 - rarr_unit_1 | 20 - rarr_unit_2 |
