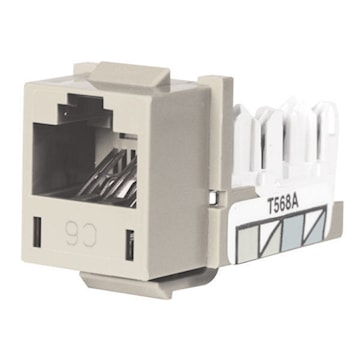

HUBBELL HXJ6OW JACK, HXJ,CAT6,8POS,UNIA/B,O
Description
XCELERATOR™ NEXTSPEED® universal modular jack with high impact thermoplastic housing, lexan stuffer cap and polypropylene dust cover. Designed to deliver headroom beyond 500 MHz for dependable multi-gigabit ethernet applications. Universal Hubbell keystone design fits into all Hubbell iSTATION™ and Delivery Plus™ products. Termination towers provide easy pair splitting, simple lacing and fast punch-down.
Specifications
Brand Name | Hubbell Premise Wiring | Sub Brand | Copper Work Area, NextSpeed®, Xcelerator™ |
Item Name | Category 6 USOC Keystone Jack | Type | Standard |
Cable Type | Category 6, 5e, 3 | Termination Style | Universal, Insulation Displacement |
Contacts | Beryllium Copper | Color | White |
Voltage Rating | 1000 V RMS, 1414 VDC | Frequency Rating | 500 MHz |
Contact Resistance | 100 O | Material | Thermoplastic |
Finish | Smooth | Insertion Loss | Per TIA |
Temperature Rating | Per TIA | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
Standards | ANSI/TIA-568-C.2 | Application | For Telephone and Data Distribution Jack |
UPC | 662620825342 |
Packages
1 - rarr_unit_1 |
