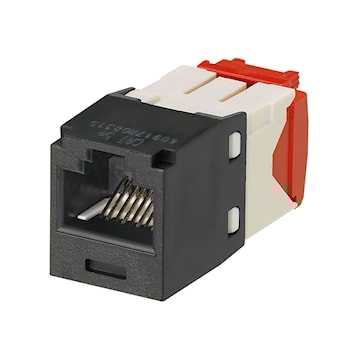

PANDUIT CJ5E88TGBL Mini-Com Cat 5e UTP Jack Module RJ45, Unshielded 8 Positions
Description
Mini-Com® TX5e™ UTP jack module. Category 5e/class D, 8 position, UTP jack module shall terminate 4 pair, 22 to 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded red to designate category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Specifications
Brand Name | Panduit | Sub Brand | Mini-Com |
Item Name | Cat 5e UTP Jack Module | Type | RJ45, Unshielded |
Cable Type | Category 5E | Number of Positions | 8 |
Termination Style | Insulation Displacement | Color | Black |
Cable Size | 26 - 22 AWG | Number of Contacts | 8 |
Material | ABS | Dimensions | 0.58 in W x 1.24 in D x 0.64 in H |
For Use With | Round and Solid Cables, Litz Wire Conductor | Application | Unshielded |
UPC | 074983395224 |
