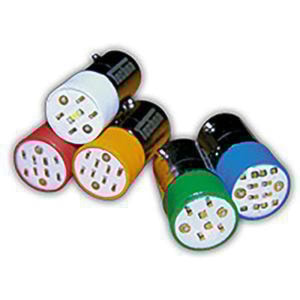

FUSETEK BA9SLED12G 12VAC/DC LED BULB GREEN

Manufacturer:FUSETEK
Manufacturer #:BA9SLED12G

Description

BA9S LED's are high brightness LED bulbs with industry standard BA9S bayonet bases. They will fit into any standard 22 mm or 30 mm pilot light that accepts BA9S bulbs. Their solid state design and long life makes incandescent bulbs a thing of the past. LED BA9s are available in industry standard colors and voltage ratings and allows LED upgrade from the front of the panel without having to open the door. High brightness single LED chip. Flat top provides superior light dispersion. Will fit most pilot lights and illuminated devices. Low energy consumption (20 mA). Cooler operation. Give off less heat. Reduced maintenance costs. Long Life (excess of 30,000 hours). Immune to vibration.

Specifications

Brand Name Fusetek Item Name Pilot Light
Voltage Rating 12 VAC/VDC Amperage Rating 10 mA
Wattage 0.75 W Lamp Type BA9S LED
Lens Color Green Nominal Diameter 22 or 30 mm
Average Life 30000 hr Temperature Rating -40 °C to 60 °C
Dimensions 10 mm W x 21 mm H
