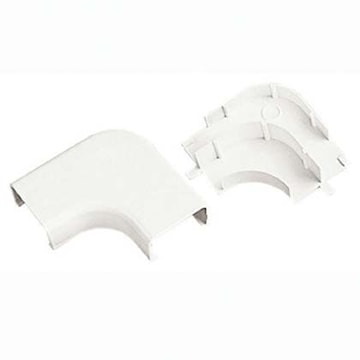

PANDUIT RAFX5WH-X Pan-Way Right Angle Fitting 2.58 in Lx 2.58 in Wx 0.64 in D for LDPH10 and LD2P10 Raceway
pccrafx5wh-x
PANDUIT RAFX5WH-X Pan-Way Right Angle Fitting 2.58 in Lx 2.58 in Wx 0.64 in D for LDPH10 and LD2P10 Raceway
Manufacturer:PANDUIT
Manufacturer #:RAFX5WH-X
Description
The right angle fitting is a surface raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LDPH5 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is white.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Way |
| Item Name | Right Angle Fitting | Type | Power Rated |
| Length | 2.58 in | Width | 2.58 in |
| Material | PVC | Depth | 0.64 in |
| Mounting Type | Snap-On | Color | White |
| For Use With | LDPH10 and LD2P10 Raceway | Standards | UL 94-V-0, FT4, TIA/EIA, UL 5A |
| Application | Routing Both Power and Data Cabling Along Perimeter Walls | UPC | 074983529858 |
