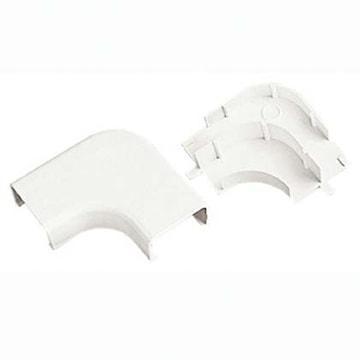

PANDUIT RAFX10IW-X Pan-Way Right Angle Fitting 3.18 in Lx 1.62 in Wx 0.93 in D for LDPH10 and LD2P10 Raceway
pccrafx10iw-x
PANDUIT RAFX10IW-X Pan-Way Right Angle Fitting 3.18 in Lx 1.62 in Wx 0.93 in D for LDPH10 and LD2P10 Raceway
Manufacturer:PANDUIT
Manufacturer #:RAFX10IW-X
Description
PANDUIT® Multi-channel right angle fitting for use with LDPH10 and LD2P10 raceway. Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fibre optic cabling systems.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Way |
| Item Name | Right Angle Fitting | Type | Power Rated |
| Length | 3.18 in | Width | 1.62 in |
| Material | ABS | Depth | 0.93 in |
| Mounting Type | Snap-On | Color | Off-White |
| For Use With | LDPH10 and LD2P10 Raceway | Standards | UL 94-V-0, FT4, TIA/EIA, UL 5A |
| Application | Routing Both Power and Data Cabling Along Perimeter Walls | UPC | 074983530793 |
