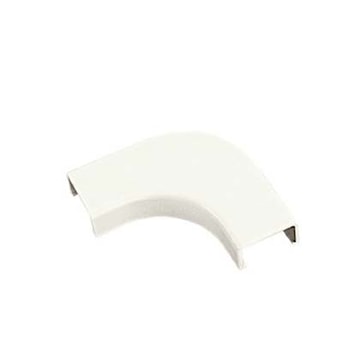

PANDUIT RAFC3IW-X Pan-Way Right Angle Fitting 2.23 in Lx 2.23 in Wx 0.47 in D for LD3, LDPH3, LDS3 Raceway
Description
PANDUIT® Right angle fitting for use with LD3, LDPH3 and LDS3 raceway. One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fibre optic cabling systems.
Specifications
Brand Name | Panduit | Sub Brand | Pan-Way |
Item Name | Right Angle Fitting | Type | Low Voltage, Bend Radius |
Length | 2.23 in | Width | 2.23 in |
Material | ABS | Depth | 0.47 in |
Mounting Type | Snap-On | Color | Off-White |
For Use With | LD3, LDPH3, LDS3 Raceway | Standards | UL 94-V-0, FT4, TIA/EIA, UL 5A |
Application | Routing Both Power and Data Cabling Along Perimeter Walls | UPC | 074983614585 |
